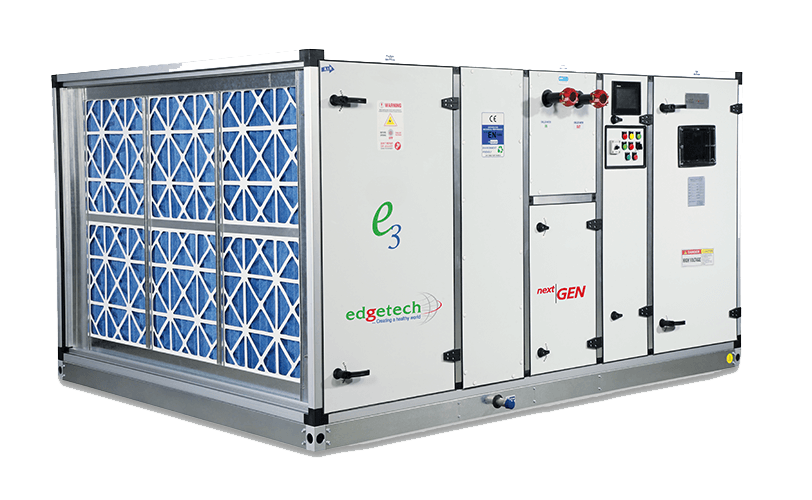

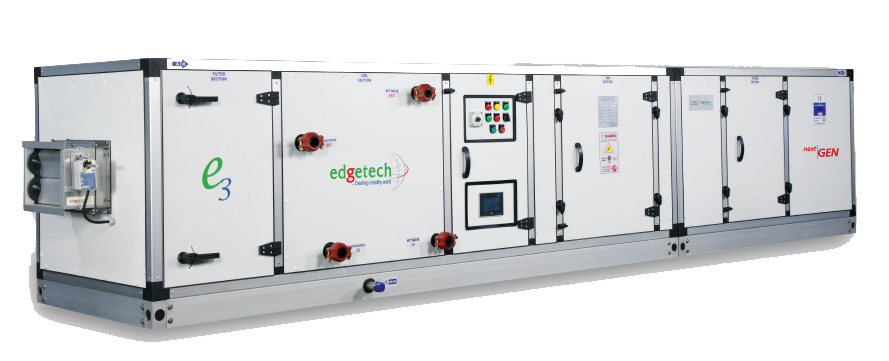

The E3 Edge series of AHU, by intent is made with compact space footprint. Consumes low energy, works quietly to deliver cleanest of the air. Specially designed thermo-acoustic panels ensure optimum thermal properties and lower noise levels. The E3 Edge series of AHU comes with super advance features and accessories.

Features

• Unique design thermal brake profile and panel to meet the International standard for leakage class.
• Corrosion resistant aluminium profile with special designed coving.
• Rigid frame work design inherent to the casing strength and stability.
• Specially designed thermo-acoustic panel for optimum thermal properties and lower noise levels.
• efficient filters to maintain the PM 2.5 air index level.
• Low pressure drops of filters resulting in lower power consumption hence substantial power savings.
• packaged with grand features like inbuilt electrical control panel with intelligent controls and sensors for automation, leading to optimum efficiency and major energy savings.
• BMS ready connectivity with option of manual operation as a standard feature.
• Highly efficient and reliable fans
• AHRI certified Heat transfer coil with factory fitted valve package for plug and play operation.
• Uniquely designed, multi slope drain pan to maintain hygienic conditions.

Benefits

• Highly efficient operations with substantial power savings
• Extremely low noise levels resulting in silent operations
• Maintains hygienic conditions

Edgetech offers unique range of particulate matter and chemical filters for the removal of airborne contaminants & gaseous pollutants. The advanced filtration system provides tropical/economy-oriented air movement, giving pleasant, natural Himalayan like environment.

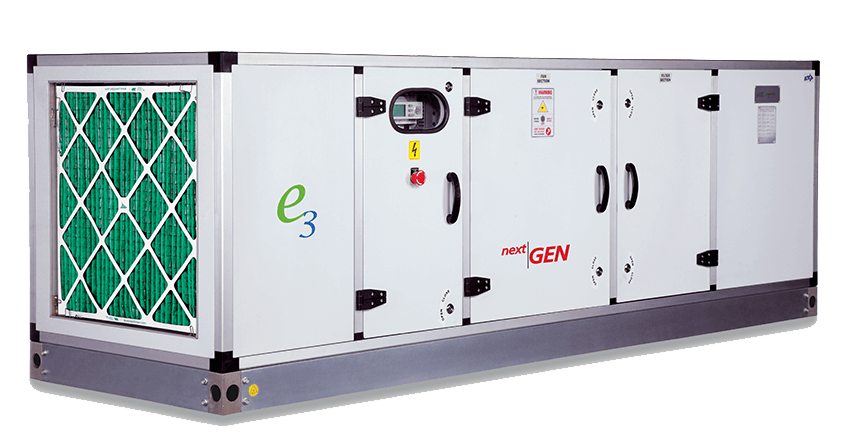

The E3 Next Gen Air Purification System has capability to remove harmful indoor and outdoor pollutants like atmospheric gases, odour, biological contamination, VOC’s and other compounds while maintaining particulate matter (PM-10, PM-2.5 & PM-1) levels, thus affecting the overall air quality. Our range of gas adsorption filter easily removes these process gases and purifies the contaminated space

Features

• Integrated with best available filtration media with unique radial pleat design filter
• Electronically Commutated (EC) fans are provided with an integrated frequency converter for step-less load control, having impeller with low aerodynamic losses thus resulting in extremely high efficiency and silent operations.
• Option of having Plug Fans with IE2, IE3 and IE4 motors with factory fitted VFD also available.
• Unique design profile and panel made with corrosion resistant aluminium to meet the international standard for leakage class.
• Rigid frame work design inherent to the casing strength and stability.
• Packaged with grand features like inbuilt electrical control panel with intelligent controls and sensors for automation that leads to optimum efficiency and major energy savings
• Highly efficient and low pressure drop filtration technology to maintain permissible PM 2.5 levels.

Benefits

• Very effective against PM-2.5 to PM-10 range particulate matter sizes.
• For adsorption of odours, vapours and gases in air conditioning applications.
• Multi-layered activated carbon media gives high performance against the suspended molecules exploiting the benefits of Rapid Adsorption Dynamics (RAD).
• Highly effective against Molecular pollutants released from external sources (traffic fumes, power generation, industry etc.)

Double Skin Packaged vertical units offer a high quality, high performance, low maintenance and cost effective air handling unit where the footprint of a traditional horizontal AHU is an unaffordable luxury. It is designed with high quality features for large custom-built air handling units.

The Vertical AHU is designed and manufactured according to the highest standards to ensure the best performance even in the most demanding conditions. The components are manufactured in-house in accordance with the company’s internal technical knowhow developed through the years of experience.

Features

• Double skin compact plug and play type of Vertical AHU’s are designed for applications where limited ground coverage is an essential requirement. The systems save 30 to 40% precious floor space
• Energy efficient high static plug/plenum fans for quieter AHU operation.
• Concealed chilled water piping work
• In built electrical panel with VFD as option available.
• Intake of return air can be from two or three sides.
• Flexibility of supply air can be designed from any of the five sides.
• Concealed piping work gives aesthetically appealing external look.
• Internally built in Pre and Fine filters suitable for Green buildings.
• Permanently sealed lubricated motor bearings ensure zero maintenance.
• SISW direct driven beltless fans confirms high efficiency and high static pressure.
• Awesome IAQ because of double inbuilt filtration.
• Double sloped diamond shaped SS 304 drain pan for easy condensate removal.
• Unit needs small installation floor area compared to traditional machines.
• Option of thermo-acoustic lined double skin 46 mm thick panels
